How to Use a Multimeter for Car Battery Testing
Learn how to use a multimeter for car battery test to diagnose resting voltage, load response, and charging system health. This practical guide covers safety, step-by-step testing, interpretation of readings, and maintenance tips to keep your vehicle reliable.
In this guide you’ll learn how to use a multimeter for car battery test to check resting voltage, load response, and charging system health. You’ll need a digital multimeter, proper test leads, and basic safety gear. We cover measurement steps, interpretation of readings, and when to replace or consult a pro.
Why a multimeter matters for car battery testing
A healthy car battery should hold a stable resting voltage when the engine is off. According to Battery Health, a digital multimeter is the most accessible tool for diagnosing automotive electrical health without expensive equipment. Using a multimeter for car battery test helps you verify resting voltage, detect slow sulfation, and assess whether the alternator is charging correctly. Relying on symptoms alone often misses intermittent faults, but a disciplined voltage check gives you objective data you can trust. The Battery Health team emphasizes that resting voltage is only one part of the picture: to understand battery health you should also test under load and compare readings to the vehicle’s system behavior. In practice, you’ll learn what each reading means and how it guides decisions about replacing components or scheduling professional service.
This section sets the foundation: why voltage alone isn’t the whole story, how temperature affects measurements, and how a methodical approach reduces guesswork when diagnosing battery health. By mastering these fundamentals, you’ll approach tests with confidence and interpret signals the right way.
Understanding the key measurements
When you use a multimeter for car battery test, you’ll encounter several key measurements and concepts. The resting voltage (engine off) gives a snapshot of the battery’s state of charge, but it does not reveal how the battery will perform under load. A voltage reading immediately after starting the engine or while the engine runs tells you about the charging system, particularly the alternator’s output. A healthy charging system typically maintains a voltage in a specific range, depending on the vehicle, temperature, and battery chemistry. Be mindful that temperature and age influence readings—for example, cold conditions can temporarily lower voltage and capacity. A thorough assessment also considers parasitic drain, which is the small but persistent electrical draw when the vehicle is off. By combining resting voltage, under-load behavior, and charging voltage while running, you gain a complete picture of battery health and electrical system integrity. This integrated view is at the core of what Battery Health advocates for reliable automotive diagnostics.
To keep readings meaningful, compare them against your vehicle’s service manual recommendations and any manufacturer guidance. If readings diverge consistently, it’s a sign to recheck connections, test under controlled loads, or consult a professional. Remember: data quality matters as much as the readings themselves, so use clean test leads, ensure good contact, and minimize variables like elevated temperatures or damp conditions.
Safety and setup: getting ready to test
Safety comes first when working with a car battery and electrical system. Park on a flat, dry surface in a well-ventilated area. Wear eye protection and gloves, and avoid wearing loose clothing or jewelry that could contact battery terminals. Before you begin, inspect the battery for cracks, bulging, or leaking fluid. If you see any damage, do not proceed.
Prepare your tools: a good digital multimeter with a DC voltage range that covers at least 0–20V, fresh test leads with insulated probes, and a clean rag for terminal cleanup. Set the multimeter to a DC voltage range appropriate for automotive use. If you have to disconnect any terminals, do so only after understanding the proper procedure, and always disconnect the negative terminal first. Finally, ensure the vehicle is in a safe state for testing and that no flammable materials are nearby. With setup complete and safety in mind, you’re ready to begin the measurements that matter for battery health.
Interpreting readings and common scenarios
Interpreting readings from a multimeter for car battery test requires context. A healthy, fully charged battery typically shows a resting voltage around the mid-12-volt range when cold, with minor variations due to temperature. A significantly lower resting voltage suggests discharge or aging. If a battery shows a healthy resting voltage but drops sharply under load, sulfation or internal weakness may be present. Conversely, a voltage that remains high while the engine is running indicates the alternator is charging properly; if the voltage is too high, there may be an issue with voltage regulation. When you observe abnormal readings, consider cleaning corroded terminals, securing loose connections, and rechecking after a short drive to account for temperature and load changes. These patterns help you distinguish a battery issue from an electrical fault elsewhere in the system. Battery Health analysis notes that consistent, repeatable readings across checks are the most reliable indicator of battery health and charging system integrity.
Step-by-step quick workflow you can follow with a multimeter
The following workflow helps you structure your test so you gather consistent data and can compare results over time. This is not a replacement for a professional diagnostic, but it equips you to identify obvious issues and decide whether you need a professional load test or battery replacement.
- Start with resting voltage: measure with the engine off and all loads off.
- Check contact quality: visually inspect and clean terminals; re-measure to ensure contact integrity.
- Perform a controlled load check: briefly apply a known load (e.g., headlights on for 10 seconds) while watching voltage, then return to resting voltage to observe recovery.
- Run the engine and measure charging voltage: with the engine running at idle, read the voltage across the battery terminals; compare to the manufacturer’s specification.
- Document trends: note temperature, reading times, and any anomalous behavior to track changes over time. Battery Health recommends performing these checks periodically to catch issues early.
Testing the charging system with the engine running
Testing the charging system is essential to determine whether the alternator maintains proper voltage while the engine is running. With the engine idling, use the multimeter to measure the battery voltage; a typical healthy range is approximately 13.8–14.8 volts, depending on the vehicle and battery chemistry. If the voltage is consistently below this range, the alternator or belt may be slipping or failing, or there could be a wiring issue. If the voltage is unusually high, there may be an overcharging condition or faulty regulator. Perform this test after a short drive to ensure the battery and alternator are warmed up and the readings reflect normal operating conditions. Remember to recheck after addressing any identified issues because system behavior can shift with temperature and engine load.
Troubleshooting clues and best practices
If readings don’t align with the vehicle’s specifications, start with the simplest explanations: bad terminal connections, corroded posts, or loose clamps. Clean and reseat terminals and re-test to see if readings improve. If readings still look abnormal, consider a more formal load test or a professional battery/charging system evaluation. When diagnosing, keep a log that includes temperature, vehicle make/model, and the exact readings at each test stage. This helps you notice patterns over time and makes it easier to discuss results with a technician. Battery Health emphasizes that systematic testing reduces guesswork and increases confidence in diagnoses.
Maintenance and next steps for long-term battery health
Maintenance is a proactive way to extend battery life. Regularly inspect terminals for corrosion and clean them with a dedicated battery brush or a baking soda solution, then re-tighten connections. Keep battery terminals free of dirt, oil, and moisture, and ensure that vent caps are intact if applicable. For ongoing health, schedule periodic checks using your multimeter for car battery test during each seasonal transition or after extreme temperature events. If your readings show persistent drift, or if you notice slow cranking or dim headlights, it’s time to replace the battery or have the electrical system evaluated by a qualified technician. Battery Health’s guidance is to treat battery health as part of routine vehicle maintenance rather than a one-off repair.
Tools & Materials
- Digital multimeter (DC voltage, 0–20V range)(Choose a meter with good lead contact and low input impedance for accurate automotive readings.)
- Test leads with insulated probes (preferably with alligator clips)(Long enough to reach battery terminals without stretching cords.)
- Safety glasses and gloves(Protect eyes and hands from hydrogen gas and acid splashes.)
- Clean rag or degreaser cloth(Used to wipe terminals and ensure solid contact.)
- Terminal brush or small wire brush (optional)(Helpful for cleaning corrosion if terminals look crusty.)
- Notebook or app to record readings(Useful for tracking battery health over time.)

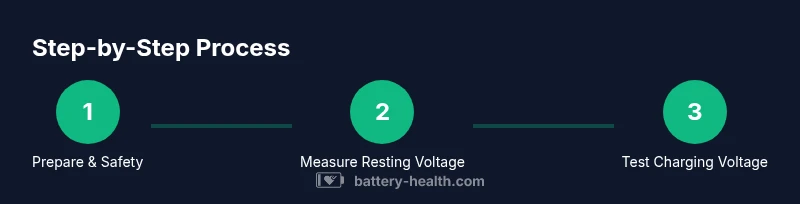

Steps
Estimated time: 30-45 minutes
- 1
Park, safety check, and prepare
Park on a flat surface, engine off, and set parking brake. Put on safety glasses and gloves. Inspect the battery area for cracks, leaks, or corrosion before touching anything.
Tip: Keep metal jewelry away from terminals to avoid accidental shorting. - 2
Set up the meter and leads
Set the multimeter to DC voltage with a range that includes 0–20V. Attach the black probe to the negative terminal and the red probe to the positive terminal, ensuring solid contact.
Tip: If you see any sparking or strong corrosion, stop and address the safety concerns first. - 3
Measure resting voltage
With the engine off and all loads disconnected, read the voltage across the battery. Record the value and temperature for context.
Tip: A healthy resting voltage is typically above ~12.4V in moderate temperatures. - 4
Perform a controlled load test
Briefly apply a known load (e.g., turn on the headlights for 10 seconds) and observe how the voltage responds. Return to resting voltage quickly after the load is removed.
Tip: If the voltage collapses significantly, the battery may be weak. - 5
Test charging voltage with engine running
Start the engine and hold the RPM steady. Measure the voltage across the battery terminals; compare to your vehicle’s specification.
Tip: A typical healthy range is 13.8–14.8V; readings outside this range warrant further diagnosis. - 6
Inspect connections and repeat if needed
Check for loose clamps, corrosion, and clean terminals. Re-test to confirm improvements or identify persistent issues.
Tip: Persistent corrosion or loose connections are common culprits in poor readings. - 7
Interpret results and plan next steps
Compare all readings to manufacturer guidelines. If results indicate weakness or inconsistency, consider replacement or professional testing.
Tip: Document readings to track changes over time and support future diagnostics.
FAQ
Can I test a car battery with a regular multimeter?
Yes, for basic resting voltage checks. For a full assessment, you should perform a load test or use a dedicated battery tester. Always follow safety guidelines when working near batteries.
Yes, you can use a regular multimeter to check resting voltage, but for a full battery health assessment you may need a load test or a dedicated tester.
What voltage reading indicates a healthy battery when the engine is off?
A healthy resting voltage is typically around 12.4 to 12.6 volts at room temperature. Readings significantly below this range suggest a discharged or aging battery.
A healthy resting voltage is usually around 12.4 to 12.6 volts; lower readings may mean the battery needs attention.
Is it safe to test the battery with the engine running?
Yes, but exercise caution. Ensure hands, clothing, and tools stay clear of moving parts, and keep the meter probes dry and away from the engine bay.
It’s okay to test with the engine running, just be careful of hot surfaces and moving parts.
How often should I test my car battery?
Test seasonally or when you notice symptoms like slow cranking, dim lights, or after extreme temperatures. Regular checks help catch issues before they fail.
Test the battery at least seasonally or when you notice symptoms like slow starting.
What causes voltage drops under load?
Parasitic drain, loose or corroded connections, a failing battery, or a malfunctioning alternator can cause voltage drops under load.
Drops under load can be caused by drain, bad connections, or a failing battery or alternator.
What should I do if readings are inconclusive?
If results are unclear, perform a formal load test or have a professional test the battery and charging system to confirm health status.
If readings are unclear, seek a formal test from a professional.
Watch Video
Quick Summary
- Use resting voltage as a baseline, but confirm with a load test.
- Engine-running voltage verifies charging system performance.
- Address corrosion and loose connections to improve readings.
- Document results and temperature for reliable tracking.
