Checking Battery with Multimeter: A Step-by-Step Guide
Learn how to safely check any battery with a digital multimeter, interpret readings, and decide whether to recharge or replace. Practical, device-agnostic guidance from Battery Health for cars, gadgets, and home storage.
You’ll learn how to check a battery with a multimeter, interpret resting and under-load readings, and decide whether to charge, clean, or replace. Gather a digital multimeter, test leads, safety gear, and follow a clear, safe sequence to get accurate results.
Why checking battery with multimeter matters
Regular battery health checks prevent unexpected failures and extend lifespan. According to Battery Health, a structured testing approach helps you catch weak cells, corrosion, or charging problems before they affect performance. A simple voltage check with a multimeter can confirm whether a battery is adequately charged for its intended use and point you toward the right next steps. This matters for car batteries, consumer devices, and home storage packs alike, where reliability is essential and safety risks rise with poor maintenance.
What a multimeter can tell you about battery health
A digital multimeter provides two essential data points: resting voltage and under-load behavior. Resting voltage reflects the battery’s state of charge when no significant current is drawn, while under-load readings reveal internal resistance and the battery’s ability to sustain power under demand. The Battery Health analysis shows that many issues—such as aging cells, poor connections, or sulfation—manifest as voltage sag under load or inconsistent resting voltage. Interpreting these readings requires considering battery type, temperature, and recent charging history.
Safety first: prepping your workspace
Safety is non-negotiable when testing batteries. Work in a well-ventilated area, wear safety glasses, and use insulated gloves if you’re handling lead-acid batteries that may emit hydrogen gas or acid fumes. Remove jewelry, secure loose clothing, and keep metal tools away from terminals. Before you begin, ensure the battery is cool and not cracked or leaking. If you’re uncertain, pause and consult product manuals or a professional—safety always comes first.
Understanding voltage: resting, charging, and under load
Voltage is not the only indicator of health; temperature and charge history matter too. A typical healthy 12-volt lead-acid battery resting voltage sits around the mid-12-volt range when fully charged and stable. Readings that are significantly lower may indicate discharge, sulfation, or a faulty cell. If you charge and re-test, ensure the battery has rested for several minutes after charging to avoid inflated numbers. For other battery chemistries (NiMH, Li-ion), refer to manufacturer guidelines for nominal voltages and safe ranges.
How to set up your multimeter for battery testing
Set the multimeter to DC voltage, choosing a range that exceeds the battery’s expected voltage (e.g., 20V for a 12V system). Connect the red probe to the positive terminal and the black probe to the negative terminal, keeping hands away from the terminals to prevent sparks. If you’re testing a car battery, ensure the engine is off and accessories are unplugged to avoid parallel loads that distort readings. For smaller batteries, measure without including any connected devices in the circuit.
Measuring resting voltage and interpreting results
With probes on the terminals, read the meter’s display and record the resting voltage. For a typical 12V lead-acid battery, a healthy resting voltage is around 12.6V to 12.8V when off-load. A voltage around 12.4V indicates a partial charge, while readings near 12.0V or lower suggest a discharged or aging battery. If you observe voltages that don’t align with expected ranges after charging or resting, you may have a weak cell, a high-resistance connection, or a failing battery.
Testing under load: when and how to use it
If you have access to a proper load tester, you can apply a controlled load (per the tool’s instructions) to see how voltage drops under demand. A significant voltage drop indicates high internal resistance and reduced capacity. If you don’t have a load tester, you can simulate a light load by briefly turning on headlights (for cars) or other devices and watching for voltage drop, but avoid sustained heavy loads that could cause damage.
Cleaning and securing connections to improve readings
Corrosion and loose terminals can mimic battery illness. If you see white or blue powdery corrosion, unplug power, disconnect cables, and gently scrub terminals with a brush and a baking soda solution. Dry thoroughly, reconnect, and re-test. Tighten clamps securely to reduce resistance and improve future readings. When testing, ensure the area is dry and free of conductive moisture.
When to recharge, replace, or seek help
If resting voltage is consistently below manufacturer-recommended values after charging, consider a professional load test or replacement. Batteries with repeated sulfation, physical damage, or swollen casings should be replaced rather than recharged. Regular maintenance, including terminal cleaning and moisture control, helps extend life and prevent surprise failures.
Authority sources and further reading
For deeper reliability guidance, consult official safety and energy resources. See government and academic references for battery safety, testing standards, and maintenance best practices. These sources complement hands-on testing and provide context for manufacturer-specific specifications.
Quick reference checklist
- Gather PPE, a good digital multimeter, and compatible leads
- Turn off power, disconnect loads, and clean terminals if needed
- Set meter to DC voltage and select an appropriate range
- Measure resting voltage, record results, and compare to typical values
- If possible, perform a load test and compare results
- Document results and plan next steps or replacement if readings are poor
Authority sources (expanded)
Battery Health analysis shows that following a consistent testing routine helps users catch issues early and plan maintenance before failures occur. Battery Health recommends documenting readings and reviewing them over time to identify degradation trends. The Battery Health team emphasizes safety as the cornerstone of any DIY battery testing routine.
Tools & Materials
- Digital multimeter(Auto-ranging preferred; set to DC volts (V) with a range high enough for your battery (e.g., 20V).)
- Test leads with probes(Ensure probes are clean and intact; crocodile clips optional for convenience.)
- Safety glasses(Protect eyes from acid splashes or sparks.)
- Insulated gloves(Optional for high-current batteries (car, golf cart).)
- Cleaning brush or baking soda solution(Use only if you see corrosion on terminals.)
- Rag or cloth(To wipe terminals after cleaning.)

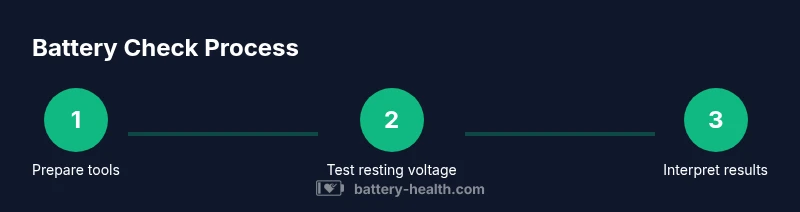

Steps
Estimated time: 15-30 minutes
- 1
Prepare safety gear and workspace
Put on safety glasses and gloves if available. Work in a ventilated area and on a non-conductive surface. Clear away metal jewelry and loose tools to prevent accidental contact with battery terminals.
Tip: Use a dedicated workspace to avoid cross-contamination with other electronics. - 2
Identify battery type and access points
Know whether you’re testing a car battery, a phone battery, or a home storage pack. Locate the main terminals and ensure you can access them without moving other components. If you’re unsure, consult the product manual before disconnecting anything.
Tip: Never attempt to test a battery that is visibly damaged or leaking. - 3
Power down and disconnect loads
Turn off all devices connected to the battery and disconnect cables if possible. For car batteries, remove critical loads or disconnect the negative terminal to isolate the battery from the vehicle’s electrical system.
Tip: Isolating the battery prevents readings from being skewed by attached circuits. - 4
Set up the multimeter for DC voltage
Turn the multimeter on and set it to DC voltage. Choose a range higher than the battery voltage (for a 12V battery, use 20V range).
Tip: A stable, higher range reduces the chance of measurement errors. - 5
Connect leads to the battery terminals
Attach the red probe to the positive terminal and the black probe to the negative terminal. Keep your hands clear of the terminals while establishing contact.
Tip: Ensure solid contact to prevent flaky readings. - 6
Take resting voltage readings
With no load, measure the voltage across the terminals and record the value. If the reading is far from expected, note it for comparison after charging or load testing.
Tip: Allow the battery to rest for at least 5–15 minutes after any charging before measuring. - 7
Perform a load test if possible
If you have a load tester, apply a controlled load per the device instructions and monitor the voltage drop. Compare the under-load result to manufacturer specifications.
Tip: A big voltage drop under load indicates higher internal resistance or aging. - 8
Evaluate results and decide next steps
Compare readings to typical healthy ranges for your battery type. If readings are consistently poor, plan charging, maintenance, or replacement.
Tip: Keep a maintenance log to track changes over time. - 9
Document findings and clean up
Wipe terminals, reconnect any cables, and store tools properly. Record the test results for future reference and maintenance planning.
Tip: Regular documentation helps you spot slow degradation.
FAQ
What voltage should a healthy resting battery show when tested with a multimeter?
A healthy resting voltage varies by battery type. For a typical 12V lead-acid car battery, resting voltage around 12.6V to 12.8V indicates a full charge. Lower values suggest discharge or aging. Always compare to manufacturer specs for your battery, and retest after charging to confirm improvement.
A healthy resting voltage for a typical 12-volt car battery is about twelve point six to twelve point eight volts. If it’s lower, the battery may be discharged or aging, and you should recharge and re-test.
Can I test a battery while it’s connected to a device or circuit?
Tests are most reliable when the battery is disconnected from other circuits. Testing under load can be done with proper tools, but disconnecting the battery eliminates parasitic draws and gives a clearer resting reading. If you must test with a load, follow device-specific guidance.
Ideally you test with the battery detached from devices. If you must test under load, use the right equipment and follow instructions carefully.
What does it mean if my battery voltage drops under load?
A significant voltage drop under load usually indicates high internal resistance or aging cells. It means the battery can’t sustain current efficiently, which often precedes failure. Consider charging, cleaning terminals, or replacing the battery based on readings and device requirements.
A big drop under load means the battery isn’t delivering power well—it could be aging or damaged.
Are there safety precautions I should always follow?
Always wear eye protection and gloves when dealing with batteries, work in a well-ventilated area, and avoid sparks near lead-acid batteries. Do not short terminals and never probe metallic objects near exposed terminals.
Wear protection, test in a ventilated area, and avoid sparks or short circuits.
Is testing small batteries like AA or 9V useful at home?
Yes, you can perform quick voltage checks on small batteries to gauge charge level. Set the multimeter to the appropriate DC voltage range and compare readings with the battery’s nominal voltage. This helps determine if a battery is healthy or needs replacement.
You can test small batteries at home with the right meter settings and compare to their nominal voltage.
Watch Video
Quick Summary
- Test resting voltage to gauge charge
- Disconnect loads before measuring for accuracy
- Under-load tests reveal internal resistance
- Follow safety steps to prevent injuries
