Why test a battery with a multimeter

Regularly verifying battery health with a multimeter test battery approach helps you catch deterioration early and plan replacements before a roadside or device failure. Whether you’re checking a car battery, a laptop cell pack, or a home storage battery, a simple DC voltage test can reveal how the chemistry is performing. According to Battery Health, consistent voltage checks across different battery types provide a practical baseline for aging and safety. By comparing open-circuit readings to the manufacturer’s specification and noting any sudden changes, you can distinguish a healthy cell from one that’s on the brink of failure. This approach also supports preventive maintenance, saving time and money down the line, especially for households relying on backup power or critical electronics.

Key measurements when using a multimeter on a battery

When you test with a multimeter, you’ll focus on two core measurements: open-circuit voltage (OCV) and loaded voltage. OCV is the battery’s resting voltage with no external load, which gives a baseline reading of its chemical state. Loaded voltage is measured while the battery is supplying current through a known load, which reveals internal resistance and actual performance under use. For a healthy battery, OCV should align with the battery’s specification, and the voltage under load should stay above the minimum acceptable threshold. Always document both readings and compare them against manufacturer data and regional standards. This helps in trend analysis over time and supports safer decisions about replacement intervals.

Choosing the right multimeter and accessories

Select a digital multimeter with a solid DC voltage range (at least 0–20 V for small batteries and 0–60 V for common automotive applications) and good accuracy (±1%). Auto-ranging models reduce setup errors. Ensure the meter has good lead quality and insulated probes, plus compatibility with low-voltage testing if you work with Li-ion packs. For a reliable test, have a load resistor or a known-load device ready to apply a controlled draw. Keep spare test leads, safety gloves, and eye protection handy. Always store equipment in a dry area to avoid corrosion on terminals and probes.

Safety first: precautions for battery testing

Battery testing can be dangerous if mishandled. Always wear eye protection and insulated gloves when probing terminals. Work in a ventilated space, away from flammables, and avoid shorting terminals with metal tools. If you’re testing a large lead-acid or Li-ion pack, disconnect power to the surrounding circuit only after ensuring the device is safe to work on. Never touch both terminals simultaneously with your bare hands, and keep metal jewelry away from exposed terminals. If heat, smoke, or a hissing sound appears, stop immediately and reassess the setup.

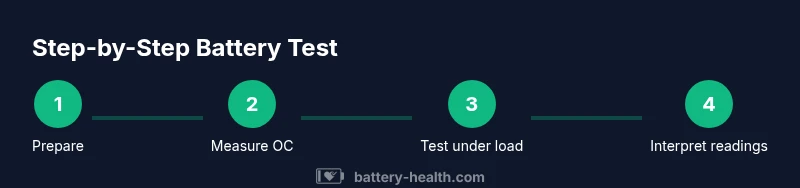

Step-by-step overview for a basic test (isolation recommended)

Before you dive into the detailed steps, visualize a typical 12 V lead-acid battery test: you’ll check OC voltage, apply a controlled load, observe voltage under load, then interpret the results. This overview helps you prepare the right range settings, select an appropriate load, and understand what readings imply for battery health. The process is adaptable to many chemistries, but always start with a lower-risk test first to prevent accidental shocks or short circuits.

Step-by-step overview for a basic voltage test (isolated battery example)

In this example, you’ll perform a non-destructive voltage test on a 12 V battery to establish a baseline, then you’ll compare outcomes to expected ranges. If readings are outside tolerance, you’ll know to recheck connections, measure again, or pursue replacement. This section sets the scene for the more detailed, step-by-step instructions that follow in the dedicated STEP-BY-STEP block.

Interpreting results and deciding on next steps

If the open-circuit voltage sits within spec but the loaded voltage drops significantly under a modest load, the battery may be aging or have internal resistance issues. Conversely, a very low OC voltage usually indicates a depleted or damaged cell. Battery Health analysis shows that gradual declines over repeated tests typically signal wear, while abrupt changes point to a possible failure mode. In any case, document the readings, assess usage history, and plan maintenance or replacement accordingly.

Testing different battery chemistries: Li-ion vs lead-acid

Lead-acid batteries show larger voltage variations when under load compared with solid-state or Li-ion cells. Li-ion packs often require careful charging and thermal management to avoid false readings due to temperature effects. Always consult chemistry-specific guidelines: Li-ion cells demand safer handling, while lead-acid units need checks for electrolyte levels in some designs. The key is to adapt your test setup to the chemistry, keep the load within safe limits, and respect manufacturer instructions.

In-circuit vs isolated battery testing: what to know

Testing an isolated battery—one removed from its device—reduces parasitic load and measurement error. In-circuit tests can reveal how the battery behaves under real system conditions but risk misreading due to other components. Whenever possible, boot the device in a safe, controlled state or remove the battery for a clean assessment. Reference charts will help you translate readings into action steps, whether that means calibration, balancing, or replacement.

Documentation and trend tracking for ongoing health

Capture every reading with date, temperature, and operating conditions. A simple log lets you track performance over time and spot gradual degradation. Pair voltage data with any available impedance or capacity tests for a more complete health profile. Regular documentation helps you schedule maintenance before failure and supports resale value for devices and vehicles.

Common mistakes and troubleshooting

Common pitfalls include using the wrong DC range, misplacing probes, and neglecting safety steps. A loose connection can mimic a false drop under load, leading to unnecessary replacement. Always recheck contact points after each measurement, and consider repeating the test with a different load to confirm results. When readings don’t match expectations, re-evaluate the test setup, verify battery temperature, and compare against your device’s data sheet.

Tools & Materials

digital multimeter with DC voltage measurement(Auto-range preferred; ensure 0–20 V or higher range fits the tested battery)
red and black test leads with insulated probes(Ensure probes are rated for the voltage and current you’ll encounter)
load resistor or known-load device(Example: 5–10 ohm resistor for a 12 V battery; rated for required wattage)
the battery under test(Identify battery type (Li-ion, lead-acid, NiMH) before testing)
safety gear (gloves and eye protection)(Protective equipment to reduce risk from short circuits or leakage)
insulated tools and non-metallic tweezers(Used to avoid accidental shorts during connections)

Steps

Estimated time: 15-25 minutes

1
Prepare the safety setup
Put on safety gear, clear the work area, and identify the battery terminals. If testing a large pack, consult the manufacturer guidelines and consider isolating the battery from any circuits before proceeding.
Tip: Always work on a non-conductive surface and keep metal objects away from terminals.
2
Configure the multimeter
Set the multimeter to a DC voltage range that comfortably covers the battery’s expected voltage. If you’re unsure, start with a higher range and switch down as readings stabilize.
Tip: Avoid overloading the meter by setting ranges too close to the expected value.
3
Connect the leads for open-circuit voltage
Attach the probes to the battery terminals without applying load. Observe the OCV reading and record the value along with the ambient temperature.
Tip: Ensure probes contact only the terminals and not each other.
4
Apply a controlled load
Connect a known-load resistor or device to the battery to simulate typical usage. Monitor the voltage while the load is applied.
Tip: Keep the load within safe limits to prevent overheating or damage.
5
Measure loaded voltage and calculate drop
Record the voltage under load and compare it to the open-circuit value. A significant drop indicates higher internal resistance.
Tip: A small drop is normal; large drops suggest aging or faults.
6
Interpret results and document
Check readings against the battery’s data sheet and note any deviations. Decide whether the battery can rehabilitate, requires balancing, or needs replacement.
Tip: Documentation helps track health trends over time.

Pro Tip: Double-check connections before each measurement to avoid false readings.

Warning: Never short terminals with metal objects; this can cause sparks or damage.

Note: Temperature can affect voltage readings; record ambient conditions for context.

Pro Tip: Log readings in a simple table to spot gradual declines over time.

FAQ

What is open-circuit voltage and why does it matter?

Open-circuit voltage is the resting voltage when no load is connected. It provides a baseline for battery health and should align with the manufacturer’s spec. Large deviations from spec can indicate aging or damage.

Can I test a car battery with a basic multimeter?

Yes, a basic multimeter can test a car battery’s voltage. For accurate results, ensure the engine is off, and the battery is isolated from the vehicle’s electrical system before measuring.

What voltage range indicates a healthy battery?

Healthy ranges depend on battery type. For example, a healthy 12 V lead-acid battery typically reads near 12.6 V at rest; Li-ion packs have higher nominal voltages per cell. Always compare to the manufacturer data sheet.

Is it necessary to test under load every time?

Under-load testing provides a more realistic picture of performance under typical use. It’s not always necessary for simple checks, but it’s recommended for batteries that show borderline OC readings or aging signs.

What safety steps should I take before testing?

Wear eye protection and gloves, work in a ventilated area, and never short terminals. If you notice heat, smoke, or smells, stop testing and reassess.
