How to Test a Battery with a Multimeter: Step-by-Step Guide

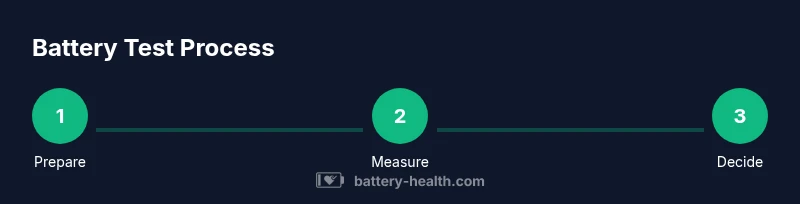

Safety-first testing: prepare and protect

According to Battery Health, safety should come first when testing any battery with a multimeter. This section explains how to prepare and protect yourself and your equipment before you touch terminals. Start by selecting a clean, dry workspace and ensuring the battery is free of moisture or exposed liquids. Wear safety glasses and insulated gloves when handling larger batteries or those with exposed terminals. Remove any metal jewelry and keep tools non-conductive whenever possible to reduce the risk of short circuits. If you’re testing a car battery under the hood, ensure the engine is off, the key is removed, and you’re standing on a non-conductive surface. For devices and home storage batteries, power down the system and disconnect any load before you begin. Finally, verify you have a clear plan and enough light to see the terminals and meters. A calm, methodical approach lowers the chance of mistakes and protects you from sparks or chemical exposure.

Key takeaway: preparation and PPE are as important as the measurement itself, especially when dealing with high-capacity or lead-acid batteries.

Understanding open-circuit voltage vs. under-load voltage

A multimeter helps you read the battery’s voltage, which is the most immediate signal of health. Open-circuit voltage (OCV) is the reading you get when the battery is at rest and not delivering current. For a healthy 12V lead-acid car battery, OCV is typically around 12.6–12.8 volts when fully charged. If the OCV sits near or below 12.0 volts, the battery is discharged or potentially failing and may need charging or replacement. Li-ion and other chemistries use per-cell voltage ranges; for example, a typical single Li-ion cell nominally runs around 3.6–3.7 volts, so a pack’s voltage depends on how many cells are wired in series. When testing, compare your readings to the manufacturer’s nominal values printed on the battery label or datasheet. If a battery reads healthy voltage under no load but collapses under even light load, the issue is usually internal resistance or a failing cell.

Practical note: always consider temperature, as a cold battery can show temporarily reduced voltage. Warm the battery gradually if safe and retest to confirm.

How to interpret readings for different battery chemistries

Different battery chemistries have different healthy voltage ranges. Lead-acid and AGM batteries used in cars expect about 12.6–12.8 V when fully charged and will drop under load. Li-ion and Li-polymer packs have higher per-cell voltages (3.6–4.2 V per cell, depending on charge level). For devices or home storage systems, consult the label for nominal voltage and expected ranges. A consistent reading close to nominal is a good sign; a voltage that’s significantly below nominal under no load or under light load generally indicates a weak battery or degraded cells. If readings vary dramatically between cells in a pack, or if corrosion is present at terminals, replace or service the battery.

Quick diagnostic checks you can perform with a multimeter

You can run a few non-invasive checks using a multimeter to gauge health without disassembly. First, measure the open-circuit voltage with the battery disconnected from any load. Then, measure terminal voltage while the load is applied (if safe to do so) to observe voltage sag. Finally, inspect connections for corrosion and clean terminals with appropriate contact cleaner if needed. If you’re testing a lead-acid or AGM battery, also verify that the highest surface temperature is within normal range; overheating can indicate internal damage. Always document readings and compare them to the battery’s spec sheet.

Tip: use a fresh set of test leads and avoid touching the metal parts with your fingers to minimize noise and human error.

When to replace vs recharge and next steps

If the OCV is within the healthy range and voltage under load remains stable, the battery is likely healthy or requires a brief recharge. If voltage stays low (significantly under nominal) after a full recharge or under load it cannot sustain voltage, the battery likely needs replacement or servicing. For car batteries, a professional load test may be advised if the voltage is borderline; for Li-ion devices, consider charging to the device’s recommended voltage and retesting after a rest period. In all cases, replace batteries that show signs of swelling, leakage, or corrosion beyond simple terminal cleaning. Record readings, track trends over time, and plan maintenance accordingly.

Pro tip: always test both terminals and the ground reference to ensure you’re not accidentally reading a short or a false signal.

Maintenance tips to extend battery life

Regular maintenance can extend battery life across car, device, and home storage applications. Keep terminals clean and free of corrosion; apply a thin layer of dielectric grease if appropriate. Ensure the battery is not left discharged for long periods, and store spare batteries in a cool, dry place. For lead-acid batteries, check electrolyte levels where applicable and top up with the correct electrolyte if required by the manufacturer. Use a quality charger designed for your battery chemistry and avoid deep discharges. Finally, during seasonal temperature shifts, give batteries a light recharge to prevent sulfation and ensure peak performance.
